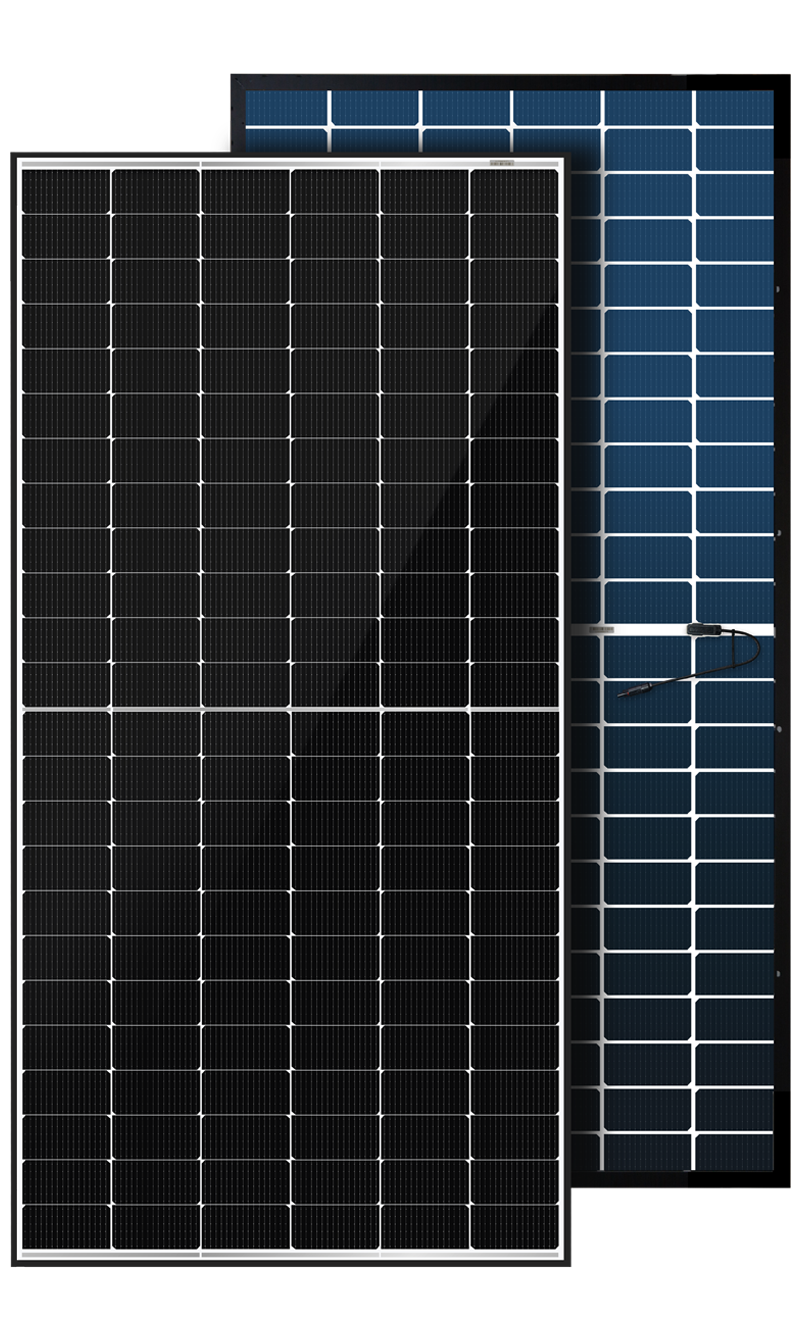

DXM8-72H
Optional color
Download PDF
Features
Sub-millilitre level Precision welding reduces cell crack and micro-cracks, enhancing durability and performance.
Sun-Earth's N-TOPCon technology ensures a performance degradation of only 13% over 30 years, providing a robust safeguard for consumer investment returns.
Achieves up to 15% additional back-side power gain with excellent temperature efficiency.
Third party tested for 2400Pa back and 5400Pa front loads; resistant to damp heat and salt mist.
Guaranteed no Potential Induced Degradation, ensuring consistent performance.
Parameters
| Tech Specs: | STC | BNPI | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Power(Pmax) | 560W | 570W | 580W | 590W | 600W | 610W | 560W | 570W | 580W | 590W | 600W | 610W |
| Maximum Power(Pmax) | 560W | 570W | 580W | 590W | 600W | 610W | 616W | 627W | 638W | 651W | 662W | 673W |
| Rated Voltage at Pmax (Vmp): | 42.1V | 42.3V | 42.5V | 42.7V | 42.9V | 43.1V | 42.37V | 42.55V | 42.73V | 42.91V | 43.10V | 43.26V |
| Rated Current at pmax (Imp): | 13.30A | 13.48A | 13.65A | 13.82A | 13.99A | 14.15A | 14.54A | 14.74A | 14.93A | 15.17A | 15.36A | 15.56A |
| Open-Circuit Voltage (Voc): | 50.1V | 50.9V | 51.3V | 51.7V | 52.1V | 52.5V | 50.59V | 50.83V | 51.08V | 51.34V | 51.58V | 51.79V |
| Short-Circuit Current(lsc): | 14.13A | 14.25A | 14.39A | 14.52A | 14.64A | 14.76A | 14.48A | 15.70A | 15.92A | 16.16A | 16.39A | 16.58A |
| Module Efficiency(ŋm): | 21.7% | 22.1% | 22.5% | 22.8% | 23.2% | 23.6% | ||||||
| Maximum System Voltage: | 1500VDC | |||||||||||
| Application Class: | Class A | |||||||||||
| Fire Resistance Class: | Class C | |||||||||||
| Maximum Over-Current Rating: | 30A | |||||||||||
| Operating Temperature: | 85% Rh,-40℃ ~ +85℃ | |||||||||||
| Maximum Snow Loads(Front): | 5400Pa | |||||||||||
| Maximum Wind Loads ( Front&Back): | 2400Pa | |||||||||||
| Maximum Hailstone lmpact (lmpact Velocity @ 23m/s): | 25mm | |||||||||||
*STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN60904-3.
*BNPI: Irradiance：front 1000W/m2, rear 135W/m2, Cell Temperature 25℃, AM=1.5.
*Average efficiency reduction of 4.5% at 200W/m2 according to EN60904-1.
| Thermal Characteristics: | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bifaciality Coefficent: | Φ Voc: 99±5 %,Φ Isc: 80±5 %,Φ Pmax: 80±10 % | |||||||||||
| Temperature Coefficient of Pmax (γ Pmp): | -0.29%/℃ | |||||||||||
| Temperature Coefficient of Voc (β Voc): | -0.23%/℃ | |||||||||||
| Temperature Coefficient of lsc (α lsc): | +0.04%/℃ | |||||||||||
| Construction Specification | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Front Cover： Back Cover： |
Anti-Reflection Coating Glass/2.0mm Heat Strenathened Glass/2.0mm |
|||||||||||
| Cell: | 144pcs 182mmx91mm mon-ocrystalline n-type solar cell | |||||||||||
| Anodized Aluminum Allloy Frame: |
Silver Black |
|||||||||||
| Junction Box: | Protection rating IP68 | |||||||||||
| Cables: | 4mm2 PV cable | |||||||||||
| Cable Length: | (+):400mm, (-):300mm;or customised | |||||||||||
| Connector: | Protection rating IP68 | |||||||||||
| Dimensions (L x W x H) | 2278x1134x30mm | |||||||||||
| Weight | 27.0±3%kg | |||||||||||

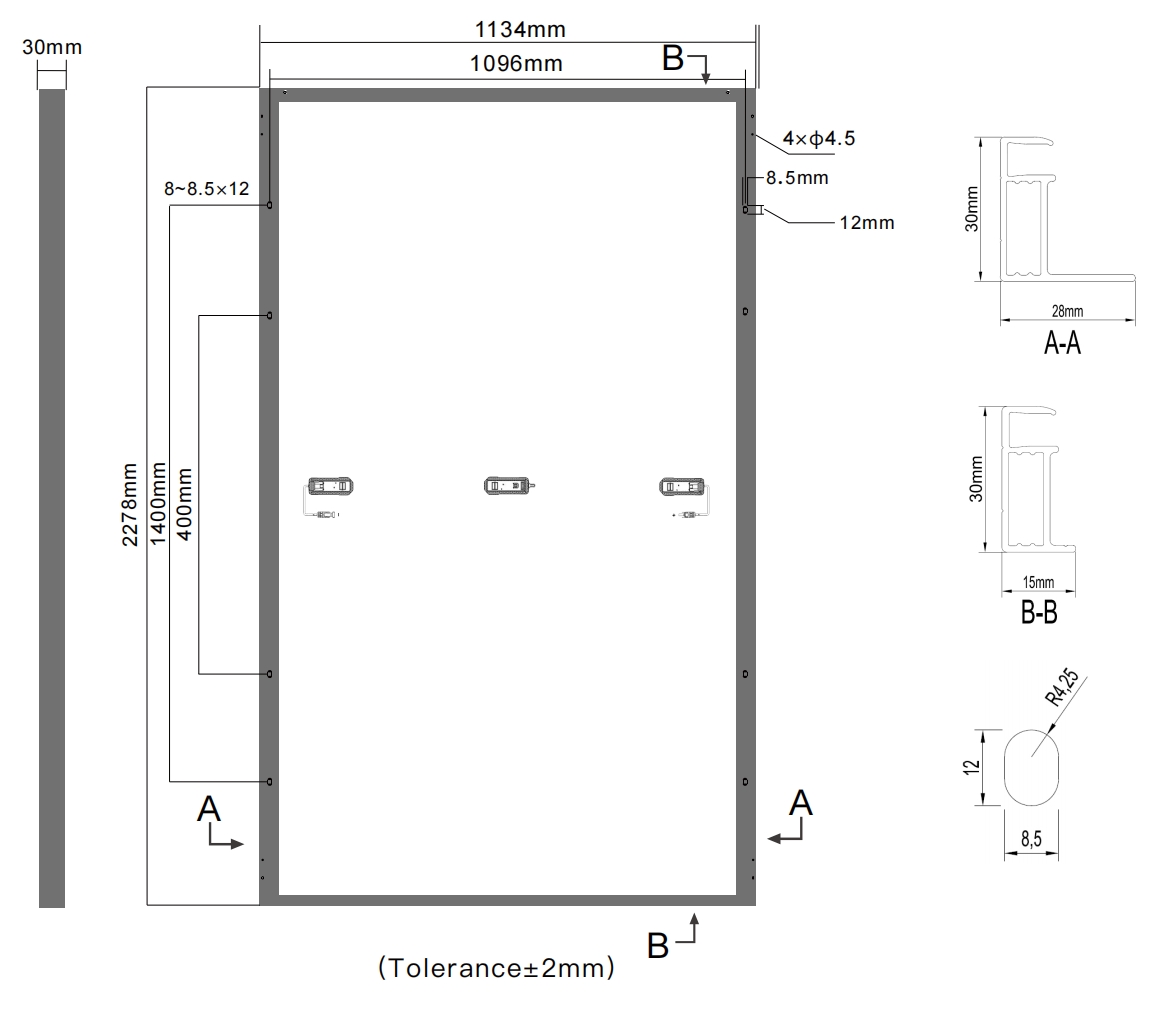

Component Dimensions
Graph

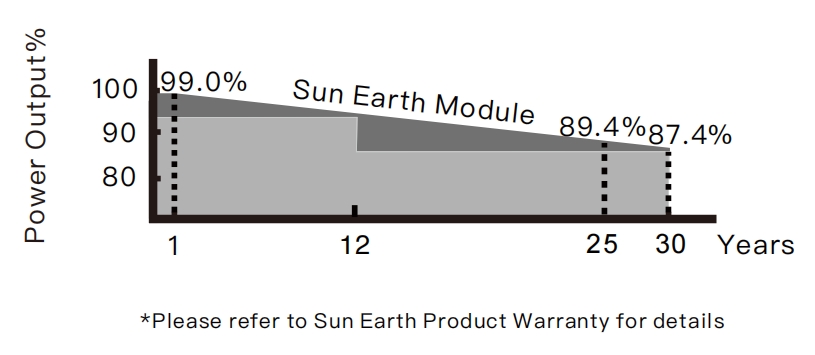

Power
