Features
Sub-millilitre level Precision welding reduces cell crack and micro-cracks, enhancing durability and performance.
Sun-Earth's N-TOPCon technology ensures a performance degradation of only 12% over 25 years, providing a robust safeguard for consumer investment returns.
Third party tested for 2400Pa back and 5400Pa front loads; resistant to damp heat and salt mist.
Guaranteed no Potential Induced Degradation, ensuring consistent performance.
Sun-Earth's N-TOPCon technology ensures a performance degradation of only 12% over 25 years, providing a robust safeguard for consumer investment returns.
Parameters
| Tech Specs: | STC | NOCT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Power(Pmax) | 410W | 420W | 430W | 440W | 450W | 455W | 410W | 420W | 430W | 440W | 450W | 455W |
| Maximum Power(Pmax) | 410W | 420W | 430W | 445W | 450W | 455W | 308.38W | 315.90W | 323.42W | 330.95W | 338.47W | 342.23W |
| Rated Voltage at Pmax (Vmp): | 31.3V | 31.6V | 31.8V | 32.0V | 32.2V | 32.3V | 29.42V | 29.70V | 29.89V | 30.07V | 30.26V | 30.36V |
| Rated Current at pmax (Imp): | 13.10A | 13.29A | 13.52A | 13.75A | 13.98A | 14.09A | 10.49A | 10.65A | 10.83A | 11.01A | 11.20A | 11.28A |
| Open-Circuit Voltage (Voc): | 37.4V | 37.9V | 38.3V | 38.7V | 39.1V | 39.3V | 35.49V | 35.96V | 36.34V | 36.72V | 37.10V | 37.29V |
| Short-Circuit Current(lsc): | 13.91A | 14.10A | 14.29A | 14.46A | 14.62A | 14.70A | 11.25A | 11.40A | 11.55A | 11.69A | 11.82A | 11.88A |
| Module Efficiency(ŋm): | 21.0% | 21.5% | 22.0% | 22.5% | 23.0% | 23.3% | ||||||
| Maximum System Voltage: | 1500VDC | |||||||||||
| Application Class: | Class A | |||||||||||
| Fire Resistance Class: | Class C | |||||||||||
| Maximum Over-Current Rating: | 25A | |||||||||||
| Operating Temperature: | 85% Rh,-40℃ ~ +85℃ | |||||||||||
| Maximum Snow Loads(Front): | 5400Pa | |||||||||||
| Maximum Wind Loads ( Front&Back): | 2400Pa | |||||||||||
| Maximum Hailstone lmpact (lmpact Velocity @ 23m/s): | 25mm | |||||||||||
*STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5(According to EN60904-3).
*NOCT: Irradiance 800W/m², Ambient Temperature 20°C, Wind Speed 1m/s.
*Average efficiency reduction of 4.5% at 200W/m2 according to EN60904-1.
| Thermal Characteristics: | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Operating Cell Temperature (NOCT): | 45±2℃ | |||||||||||
| Temperature Coefficient of Pmax (γ Pmp): | -0.29%/℃ | |||||||||||
| Temperature Coefficient of Voc (β Voc): | -0.23%/℃ | |||||||||||
| Temperature Coefficient of lsc (α lsc): | +0.04%/℃ | |||||||||||
| Construction Specification | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Front Cover: | 3.2mm low-iron tempered glass | |||||||||||
| Cell: | 108pcs 182mmx91mm mon-ocrystalline n-type solar cell | |||||||||||
| Anodized Aluminum Allloy Frame: |
Silver Black |
|||||||||||
| Junction Box: | Protection rating IP68 | |||||||||||
| Cables: | 4mm2 PV cable | |||||||||||
| Cable Length: | (+):400mm, (-):300mm;or customised | |||||||||||
| Connector: | Protection rating IP68 | |||||||||||
| Dimensions (L x W x H) | 1722x1134x30mm | |||||||||||
| Weight | 20.5±3%kg | |||||||||||

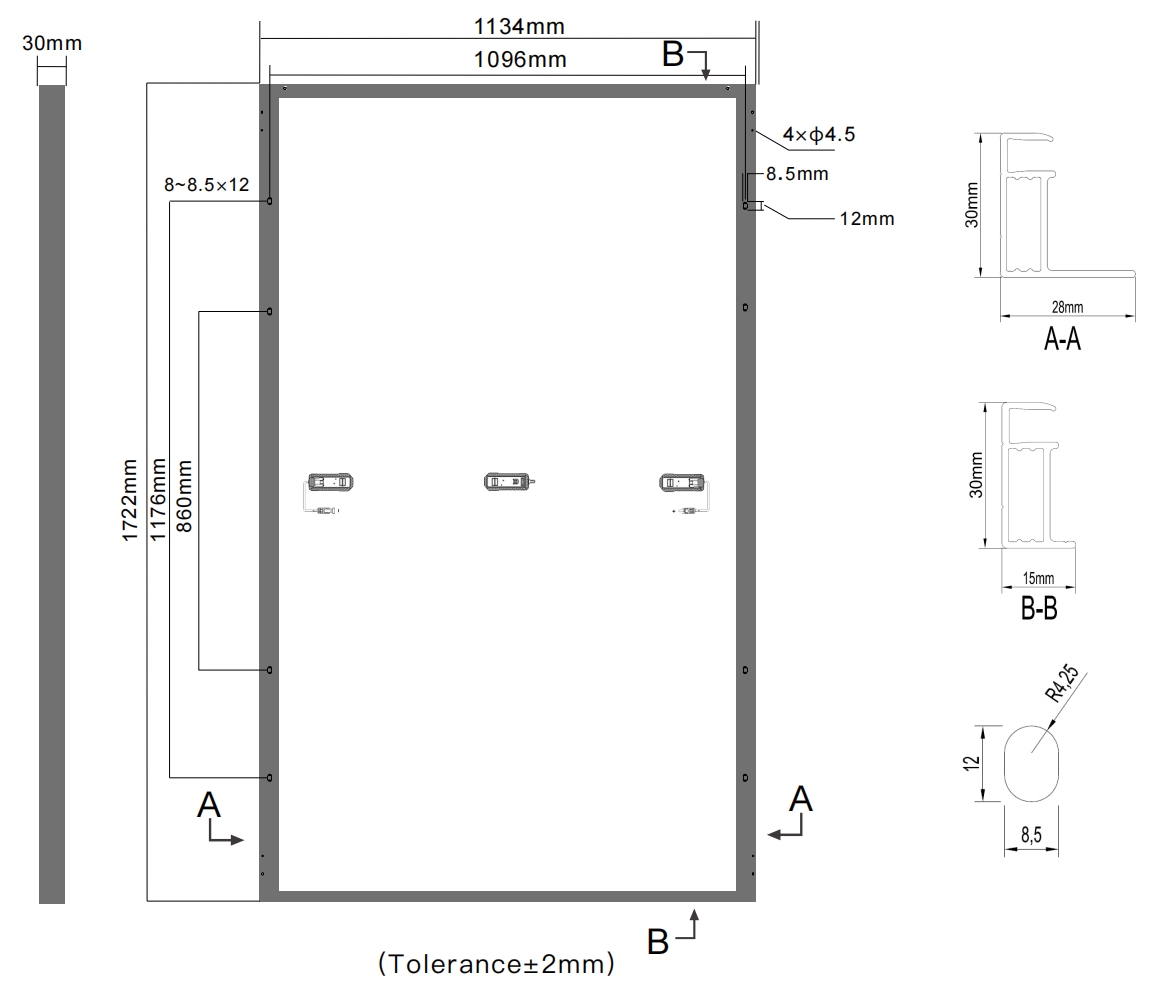

Component Dimensions

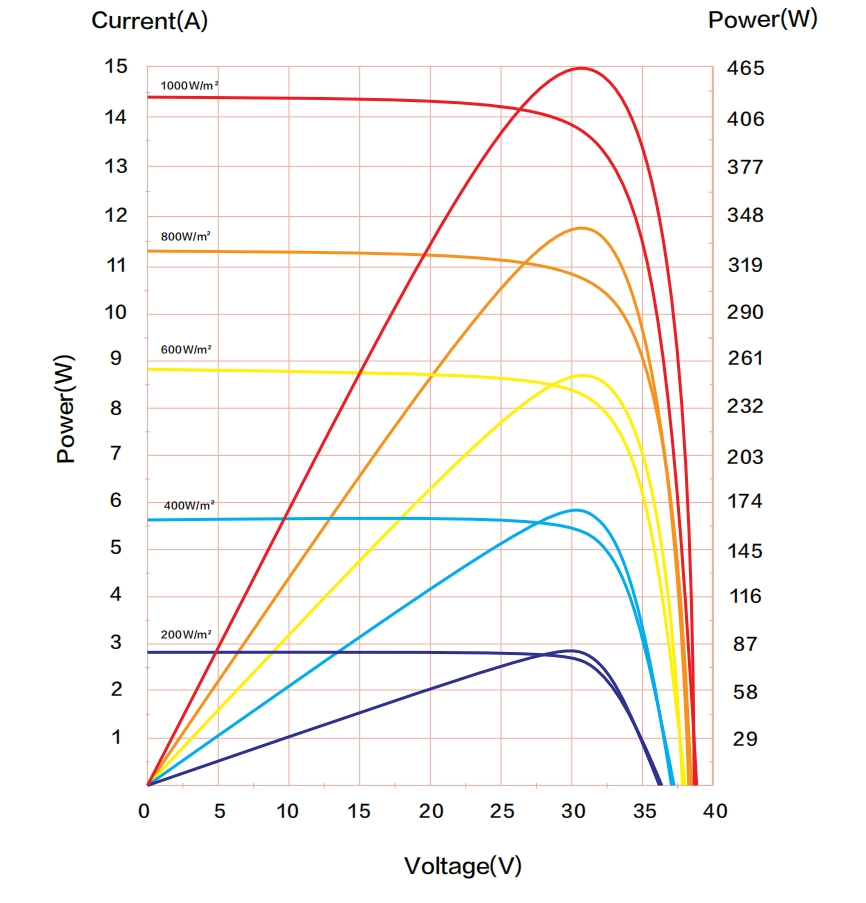

Graph

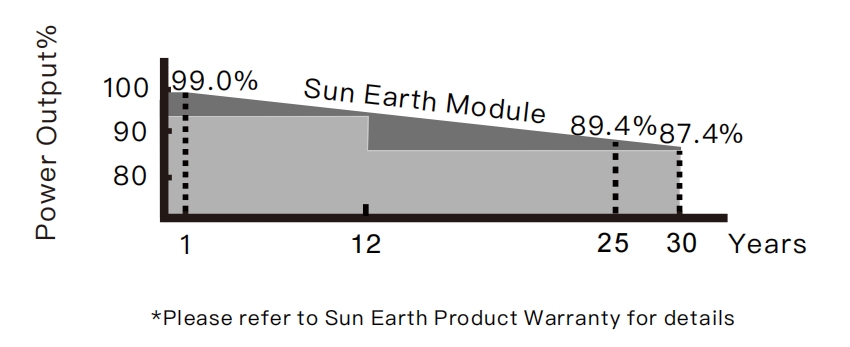

Power
