Features
Sub-millilitre level Precision welding reduces cell crack and micro-cracks, enhancing durability and performance.
Sun-Earth's N-TOPCon technology ensures a performance degradation of only 12% over 25 years, providing a robust safeguard for consumer investment returns.
Third party tested for 2400Pa back and 5400Pa front loads; resistant to damp heat and salt mist.
Guaranteed no Potential Induced Degradation, ensuring consistent performance.
Sun-Earth's N-TOPCon technology ensures a performance degradation of only 12% over 25 years, providing a robust safeguard for consumer investment returns.
Parameters
| Tech Specs: | STC | NOCT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Power(Pmax) | 560W | 570W | 580W | 590W | 600W | 610W | 560W | 570W | 580W | 590W | 600W | 610W |
| Maximum Power(Pmax) | 560W | 570W | 580W | 590W | 600W | 610W | 418.06W | 428.72W | 436.25W | 443.77W | 451.29W | 458.81W |
| Rated Voltage at Pmax (Vmp): | 42.1V | 42.3V | 42.5V | 42.7V | 42.9V | 43.1V | 39.65V | 39.75V | 39.94V | 40.13V | 40.32V | 40.51V |
| Rated Current at pmax (Imp): | 13.30A | 13.48A | 13.65A | 13.82A | 13.99A | 14.15A | 10.70A | 10.79A | 10.93A | 11.07A | 11.20A | 11.34A |
| Open-Circuit Voltage (Voc): | 50.1V | 50.9V | 51.3V | 51.7V | 52.1V | 52.5V | 46.89V | 48.30V | 48.68V | 49.06V | 49.44V | 49.81V |
| Short-Circuit Current(lsc): | 14.13A | 14.25A | 14.39A | 14.52A | 14.64A | 14.76A | 11.43A | 11.52A | 11.63A | 11.73A | 11.83A | 11.93A |
| Module Efficiency(ŋm): | 21.7% | 22.1% | 22.5% | 22.8% | 23.2% | 23.6% | ||||||
| Maximum System Voltage: | 1500VDC | |||||||||||
| Application Class: | Class A | |||||||||||
| Fire Resistance Class: | Class C | |||||||||||
| Maximum Over-Current Rating: | 25A | |||||||||||
| Operating Temperature: | 85% Rh,-40℃ ~ +85℃ | |||||||||||
| Maximum Snow Loads(Front): | 5400Pa | |||||||||||
| Maximum Wind Loads ( Front&Back): | 2400Pa | |||||||||||
| Maximum Hailstone lmpact (lmpact Velocity @ 23m/s): | 25mm | |||||||||||
*STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5(According to EN60904-3).
*NOCT: Irradiance 800W/m², Ambient Temperature 20°C, Wind Speed 1m/s.
*Average efficiency reduction of 4.5% at 200W/m2 according to EN60904-1.
| Thermal Characteristics: | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Operating Cell Temperature (NOCT): | 45±2℃ | |||||||||||
| Temperature Coefficient of Pmax (γ Pmp): | -0.29%/℃ | |||||||||||
| Temperature Coefficient of Voc (β Voc): | -0.23%/℃ | |||||||||||
| Temperature Coefficient of lsc (α lsc): | +0.04%/℃ | |||||||||||
| Construction Specification | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Front Cover: | 3.2mm low-iron tempered glass | |||||||||||
| Cell: | 144pcs 182mmx91mm mon-ocrystalline n-type solar cell | |||||||||||
| Anodized Aluminum Allloy Frame: |
Silver Black |
|||||||||||
| Junction Box: | Protection rating IP68 | |||||||||||
| Cables: | 4mm2 PV cable | |||||||||||
| Cable Length: | (+):400mm, (-):300mm;or customised | |||||||||||
| Connector: | Protection rating IP68 | |||||||||||
| Dimensions (L x W x H) | 2278x1134x30mm | |||||||||||
| Weight | 27.0±3%kg | |||||||||||

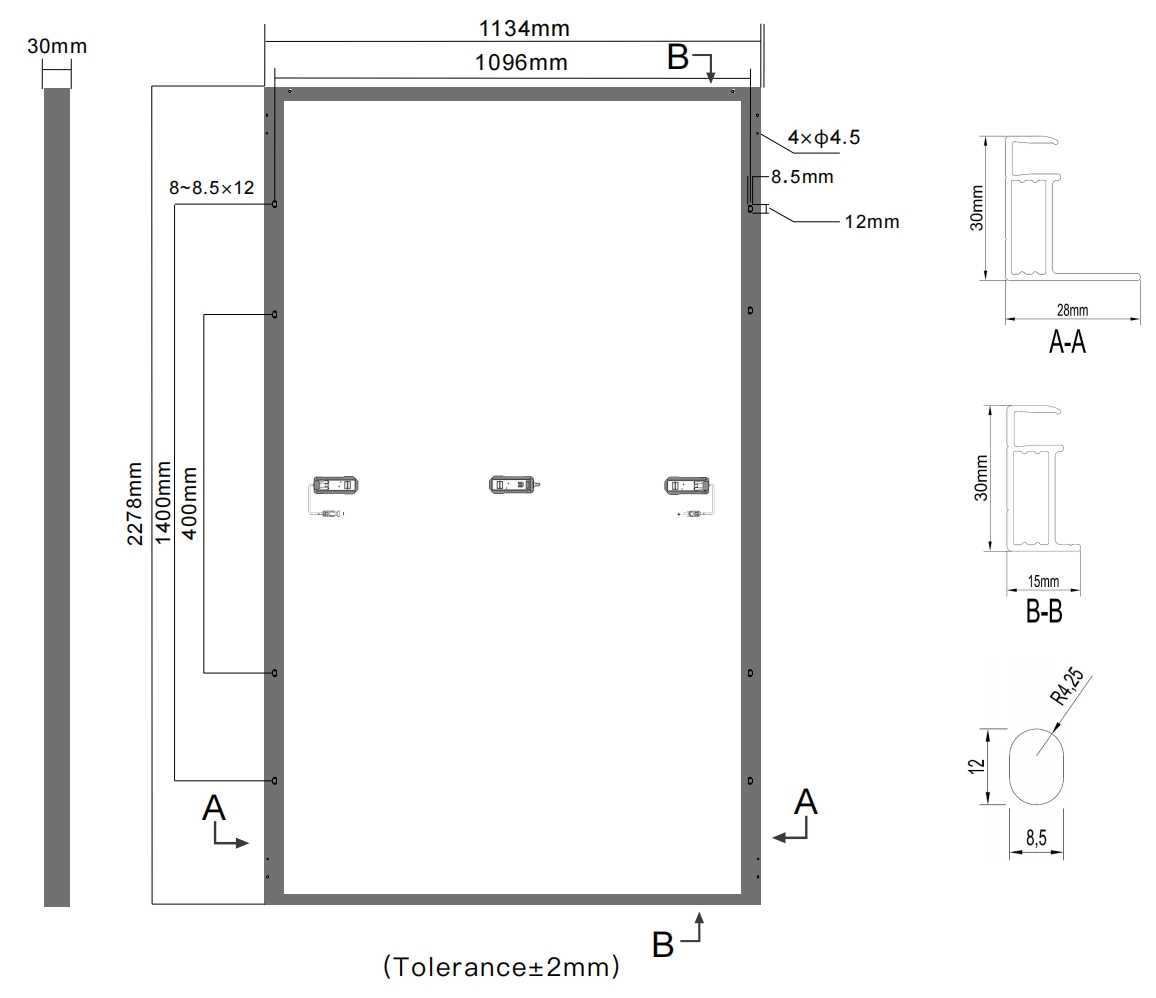

Component Dimensions

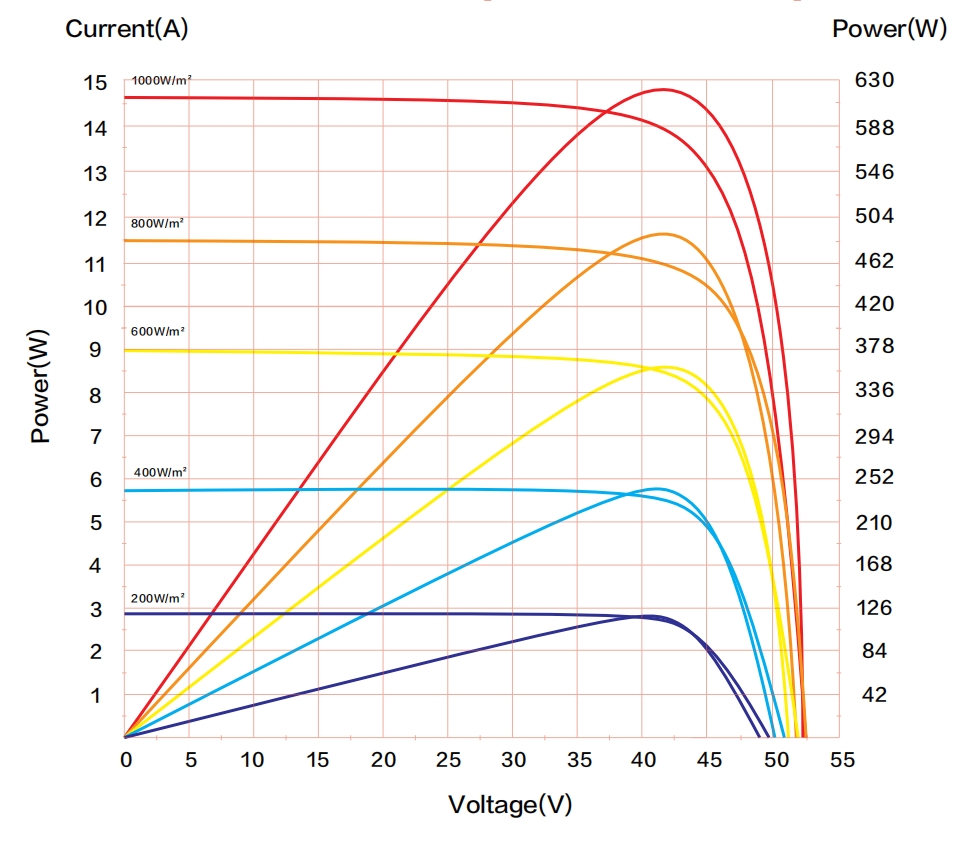

Graph
Power
