DXM8-60HBG
Optional color
Download PDF
Features
Sub-millilitre level Precision welding reduces cell crack and micro-cracks, enhancing durability and performance.
Sun-Earth's N-TOPCon technology ensures a performance degradation of only 13% over 30 years, providing a robust safeguard for consumer investment returns.
Achieves up to 15% additional back-side power gain with excellent temperature efficiency.
Third party tested for 2400Pa back and 5400Pa front loads; resistant to damp heat and salt mist.
Guaranteed no Potential Induced Degradation, ensuring consistent performance.
Parameters
| Tech Specs: | STC | BNPI | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Power(Pmax) | 460W | 470W | 480W | 490W | 500W | 505W | 460W | 470W | 480W | 490W | 500W | 505W |
| Maximum Power(Pmax) | 460W | 470W | 480W | 490W | 500W | 505W | 508W | 519W | 538W | 541W | 552W | 557W |
| Rated Voltage at Pmax (Vmp): | 35.0V | 35.2V | 35.4V | 35.6V | 35.8V | 35.9V | 36.72V | 37.06V | 37.42V | 37.80V | 38.16V | 38.34V |
| Rated Current at pmax (Imp): | 13.14A | 13.35A | 13.56A | 13.76A | 13.97A | 14.07A | 13.84A | 13.99A | 14.11A | 14.32A | 14.47A | 14.53A |
| Open-Circuit Voltage (Voc): | 41.8V | 42.2V | 42.6V | 43.0V | 43.4V | 43.6V | 43.67V | 44.12V | 44.57V | 45.05V | 45.51V | 45.74V |
| Short-Circuit Current(lsc): | 14.00A | 14.17A | 14.34A | 14.49A | 14.63A | 14.70A | 14.69A | 14.87A | 15.05A | 15.23A | 15.47A | 15.50A |
| Module Efficiency(ŋm): | 21.3% | 21.7% | 22.2% | 22.6% | 23.1% | 23.3% | ||||||
| Maximum System Voltage: | 1500VDC | |||||||||||
| Application Class: | Class A | |||||||||||
| Fire Resistance Class: | Class A | |||||||||||
| Maximum Over-Current Rating: | 30A | |||||||||||
| Operating Temperature: | 85% Rh,-40℃ ~ +85℃ | |||||||||||
| Maximum Snow Loads(Front): | 5400Pa | |||||||||||
| Maximum Wind Loads ( Front&Back): | 2400Pa | |||||||||||
| Maximum Hailstone lmpact (lmpact Velocity @ 23m/s): | 25mm | |||||||||||
*STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN60904-3.
*BNPI: Irradiance：front 1000W/m2, rear 135W/m2, Cell Temperature 25℃, AM=1.5.
*Average efficiency reduction of 4.5% at 200W/m2 according to EN60904-1.
| Thermal Characteristics: | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bifaciality Coefficent: | Φ Voc: 99±5 %,Φ Isc: 80±5 %,Φ Pmax: 80±10 % | |||||||||||
| Temperature Coefficient of Pmax (γ Pmp): | -0.29%/℃ | |||||||||||
| Temperature Coefficient of Voc (β Voc): | -0.23%/℃ | |||||||||||
| Temperature Coefficient of lsc (α lsc): | +0.04%/℃ | |||||||||||
| Construction Specification | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Front Cover： Back Cover： |
Anti-Reflection Coating Glass/2.0mm Heat Strenathened Glass/2.0mm |
|||||||||||
| Cell: | 120pcs 182mmx91mm mon-ocrystalline n-type solar cell | |||||||||||
| Anodized Aluminum Allloy Frame: |
Silver Black |
|||||||||||
| Junction Box: | Protection rating IP68 | |||||||||||
| Cables: | 4mm2 PV cable | |||||||||||
| Cable Length: | (+):400mm, (-):300mm;or customised | |||||||||||
| Connector: | Protection rating IP68 | |||||||||||
| Dimensions (L x W x H) | 1908x1134x30mm | |||||||||||
| Weight | 26.5±3%kg | |||||||||||

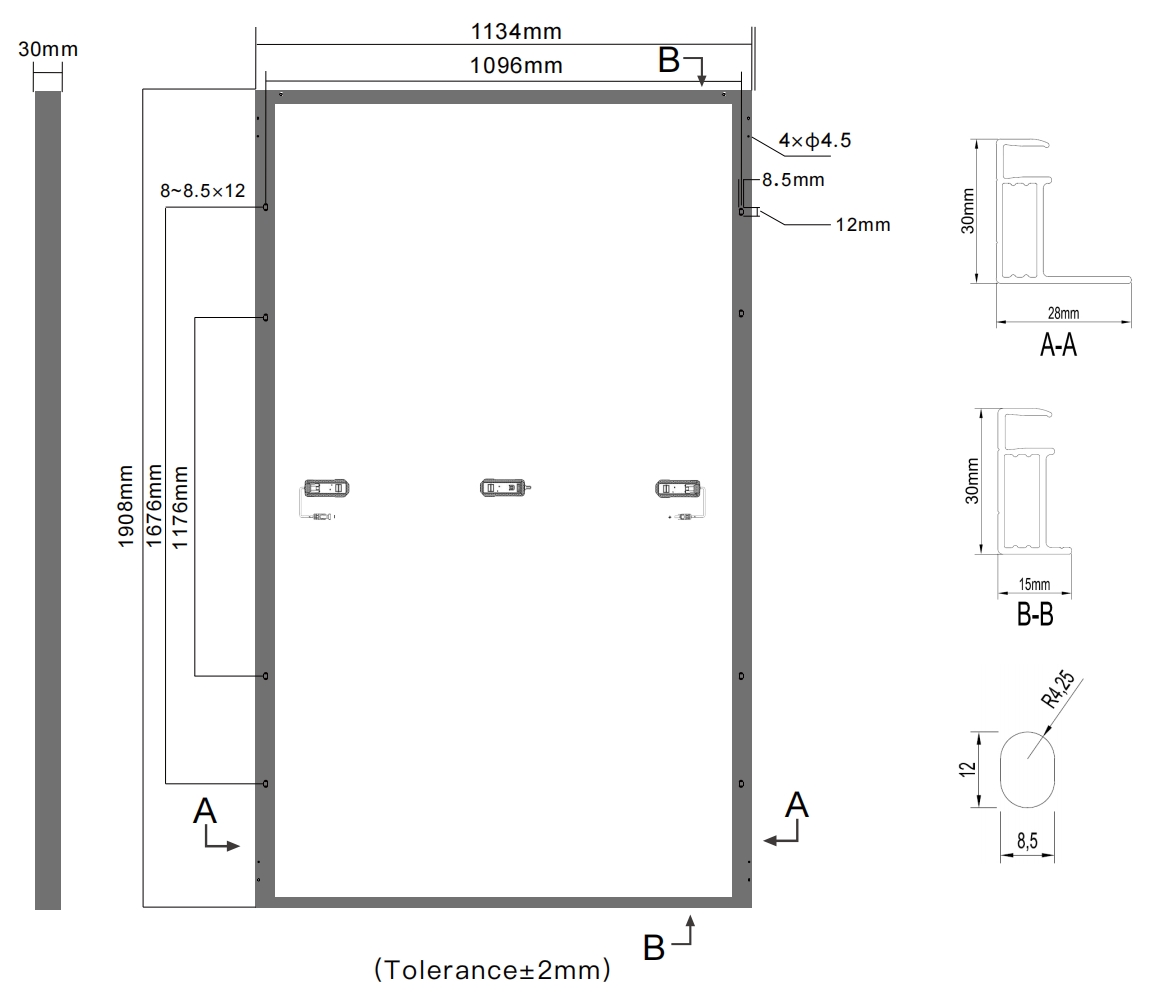

Component Dimensions

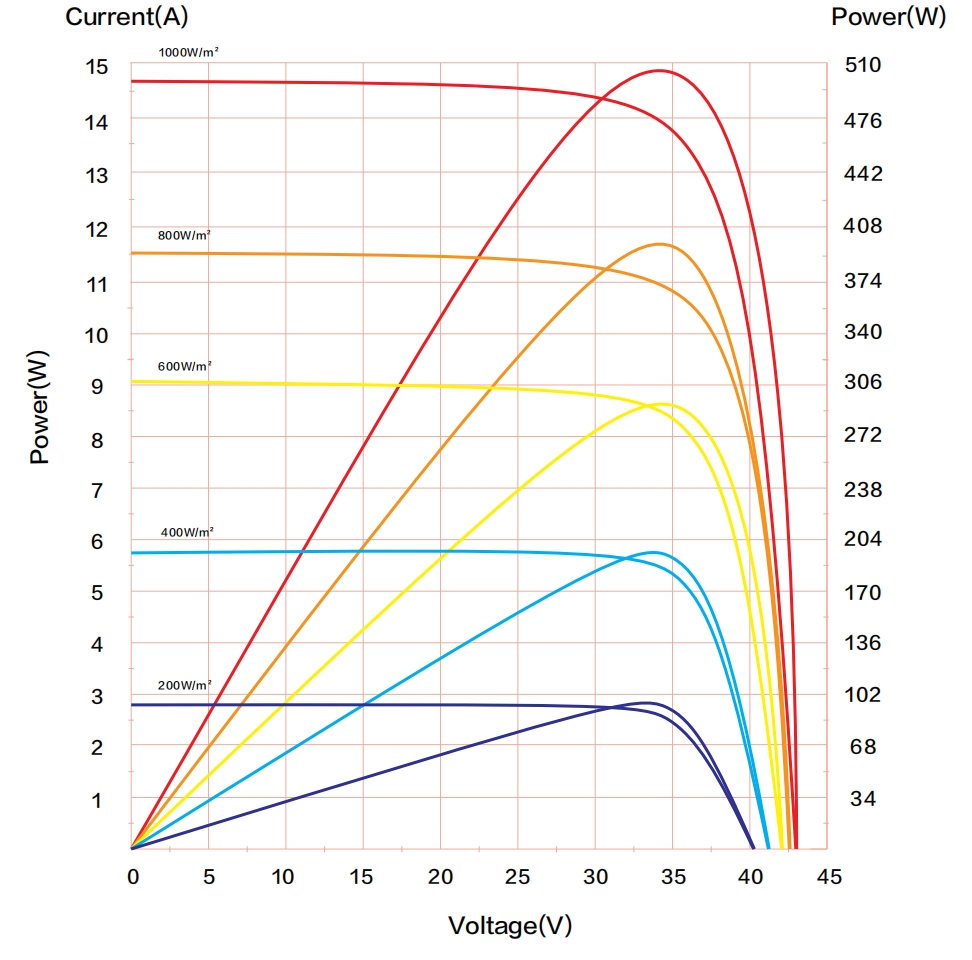

Graph

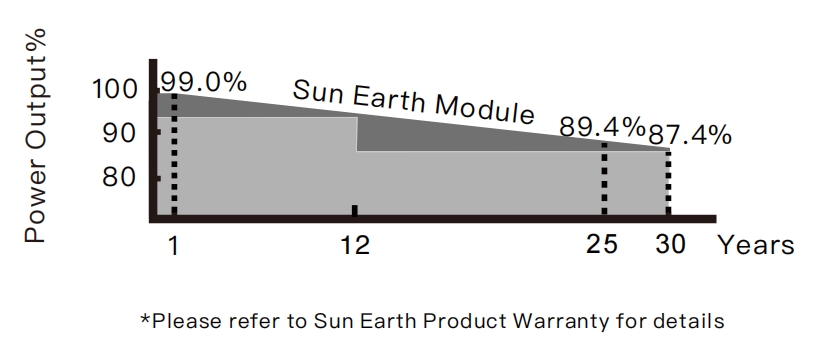

Power
